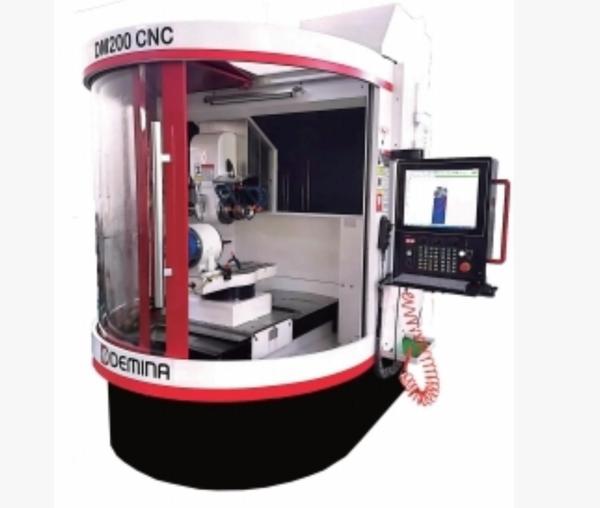

DM-200 5 Axis CNC Tool Grinder with Auto Loading Function

Certification : ISO 9001

MOQ : 1 Piece

Brand Name : DEMINA

Model Number : DM-200

Place of Origin : CHINA

Payment Terms : T/T

Supply Ability : 50 SETS PER YEAR

Delivery Time : 60 DAYS

Packaging Details : Pallet

Model NO. : DM200

Type : Tool Grinding Machine

Processing Object : Thread/Drill

Abrasives : Grinding Wheel

Controlling Mode : CNC

Automatic Grade : Automatic

Cylindrical Grinder Type : Tool Grinder

Precision : High Precision

Condition : New

Transport Package : Pallet

Specification : 2500mm*2250mm*2500mm

Trademark : DEMINA

Origin : China

HS Code : 8460310000

Production Capacity : 50 Sets Peryear

Contact Now

Description

DM 200 five- axis CNC tool grinder is developed for tool production as well as resharpening. The machine tool is a iron casting based and rigid machine,in which the X ,Y ,Z is linear axis and the A ,C are rotating axis with the application of GSYun. It is specialized in the production of standard mills varied, drill bits, reamers, non- standard cutters, and other cutting tools, with high efficiency, high precision. In high- speed steel, cemented carbide tool manufacturing field it has extraordinary advantages.


Main Parameters

Model

DM-200

1

X axis travel

800mm

2

Y axis travel

400mm

3

Z axis travel

220mm

4

A axis travel

Consecutive 3 6 0 °

5

C axis travel

±180°

6

X axis positioning accuracy

0.005mm

7

Y axis positioning accuracy

0.005mm

8

Z axis positioning accuracy

0 005mm

9

A axis positioning accuracy

0.005°

10

C axis positioning accuracy

0.005°

11

Repeat positioning accuracy

± 0 . 00 3mm

14

Speed of main shaft

0 - 6000 RPM/min

15

Number ofgrind wheels installed

6-8 pieces

16

Maximum wheel diameter

Φ150mm

17

Diameter of Grinding Wheel Rod

HSK5 0 E

18

Taper ofworkpiece shank

BT50

19

Maximum grinding length

Blade length: 1 6 0 mm;

total Length: 2 0 0 mm

20

Minimum handle diameter

Φ3mm

21

Maximum workpiece shank diameter

Φ32mm

22

Maximum l ength of workpiece

Φ200mm

23

Working pressure

0 6~0 8 MPa

24

Cooling fluid flow

85L/min

25

Total rated power of equipment

32 kw ( three- phase

AC3 8 0 V)

26

Total equipment weight

5000 kg
