DM-300 Compact 5-Axis CNC Tool Grinding Machine

Name: DM300 Compact 5Axis CNC Tool Grinding Machine
Brand: DEMINA
Price: 1 USD

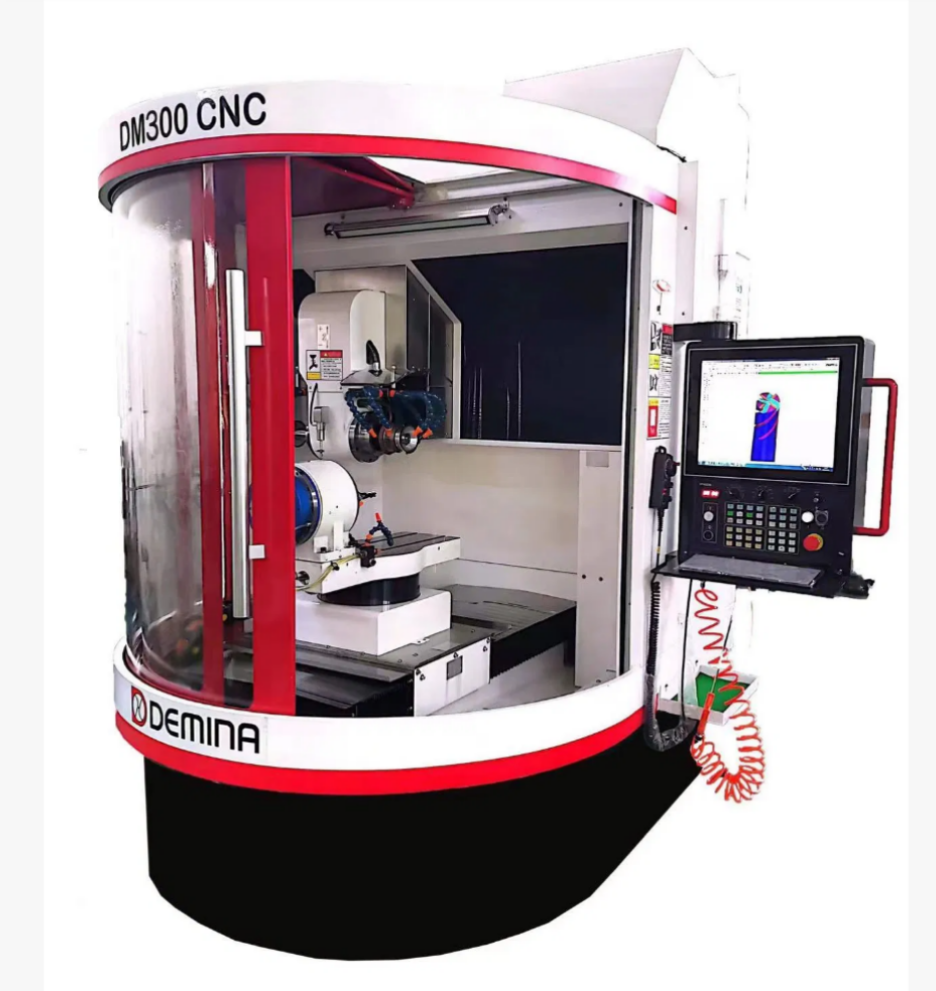

Quality DM-300 Compact 5-Axis CNC Tool Grinding Machine for sale

Certification : ISO 9001

MOQ : 1 Piece

Brand Name : DEMINA

Model Number : DM-300

Place of Origin : CHINA

Payment Terms : T/T

Supply Ability : 50 SETS PER YEAR

Delivery Time : 60 DAYS

Packaging Details : Pallet

Model NO. : DM-300

Type : Tool Grinding Machine

Processing Object : Thread Endmill

Abrasives : Grinding Wheel

Controlling Mode : CNC

Automatic Grade : Automatic

Cylindrical Grinder Type : Cutting Tool Grinder

Precision : High Precision

Condition : New

Transport Package : Pallet

Specification : 2700mm*2300mm*2800mm

Trademark : DEMINA

Origin : CHINA

HS Code : 8460310000

Production Capacity : 50 Sets Per year

Contact Now

Description

DM-300 FIVE-AXIS CUTTING TOOL GRINDER introduction is a CNC tool production machine developed for full grinding tools. The machine tool is a five-axis and five-link machine tool, in which the X ,Y ,Z is a linear servo shaft and the A , C two axes are rotating shafts. It is specialized in the production of standard milling cutters, drill bits, reamers, non-standard cutters, molding knives and other cutting tools, with low efficiency, high precision CNC tool production equipment. In high-speed steel, cemented carbide milling cutter manufacturing field has extraordinary advantages.

Main Parameters

Model	DM-300
X axis travel	950 mm
Y axis travel	520 mm
Z axis travel	280mm
A axis travel	Consecutive 3 6 0 °
C axis travel	220°
X axis positioning accuracy	0.005 mm
Y axis positioning accuracy	0.005mm
Z axi s positioning accuracy	0 005 mm
A axis positioning accuracy	0.005°
C axis positioning accuracy	0.005°
Repeat positioning accuracy	± 0. 002 mm
Minimum units	0.01°
Spindle rated power	1 8 KW; torque 3 0 NM; ( double extension spindle)
Speed of main shaft	0- 10000 RPM/min
Number ofgrind wheels installed	6-8 pieces
Maximum wheel diameter	Φ150mm
Diameter of Grinding Wheel Rod	HSK50E
Taper ofworkpiece shank	BT50
Maximum grinding length	Blade length: 2 6 0 mm; total Length: 3 0 0 mm
Minimum handle diameter	Φ3mm
Maximum workpiece shank diameter	Φ32mm
Maximum l ength o f workpiece	Φ200mm
Working pressure	0 6~0 8 MPa
Cooling fluid flow	85L/min
Total rated power of equipment	3 2 kw ( three- phase AC3 8 0 V)
Dimensions of equipment	270023002800
Total equipment weight	6000kg
