Bt-150HS PCD&CBN Tool Grinder

Condition : New

Controlling Mode : Artificial

HS Code : 8460390000

Origin : CHINA

Delivery Time : 30 DAYS

Supply Ability : 50 SETS PER YEAR

Model NO. : BT-150HS

Production Capacity : 50 Sets Per year

Transport Package : Wooden Case

Trademark : DEMINA

Packaging Details : WOODEN CASE

Specification : 1890mm*1650mm*1980mm

Processing Object : CNC Tools

Automatic Grade : Manual

Payment Terms : T/T

MOQ : 1 Piece

Abrasives : Grinding Wheel

Precision : Precision

Contact Now

Description

BT-150HS is an economical tool grinder designed for the manufacturing and regrinding of superhard cutting tools made from PCD, PCBN, and CVD, as well as carbide and high-speed steel inserts. Its unique grinding head lifting device makes it easier to grind angles and radii on non-standard tools such as welded turning tools, reamers, boring tools, grooving tools, and many other types of tools.

Main Parameters

Spindle and Grinding Wheel
Diameter of Grinding wheel	150mm
Grinding wheel center hole	40mm
Power of grinding spindle	3kW
Adjustable range of grinding speed (RPM)	500 ~ 4000RPM
Servo motor swing, adjustable oscillation frequency	0 ~ 60times/min
Grinding wheel movement range (X)	300mm
Changeable Clearance Angle	-5° ~ 25°
CCD Monitoring System
Max Magnification of Optical Microscope	0.7 ~ 4.5times
Magnification of CCD Measuring System, roughly	About 70times
Dimensions and weight
Coolant Tank with Filter Paper	About 70L
Overall Dimensions L x W x H	1890 x 1650 x 1980mm
Overall weight with Coolant Tank	2000Kg
Power Supply
Electrical Supply	12kW
Voltage Requested	380V/Three phase/50Hz

Product Tags:

PCD CBN tool grinder machine

BT-150HS insert grinder

PCD CBN grinding machine with warranty

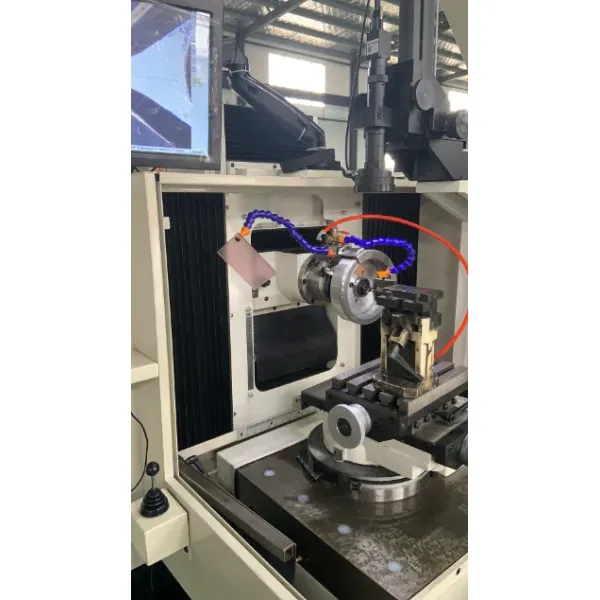

Bt-150HS PCD&CBN Tool Grinder Images
